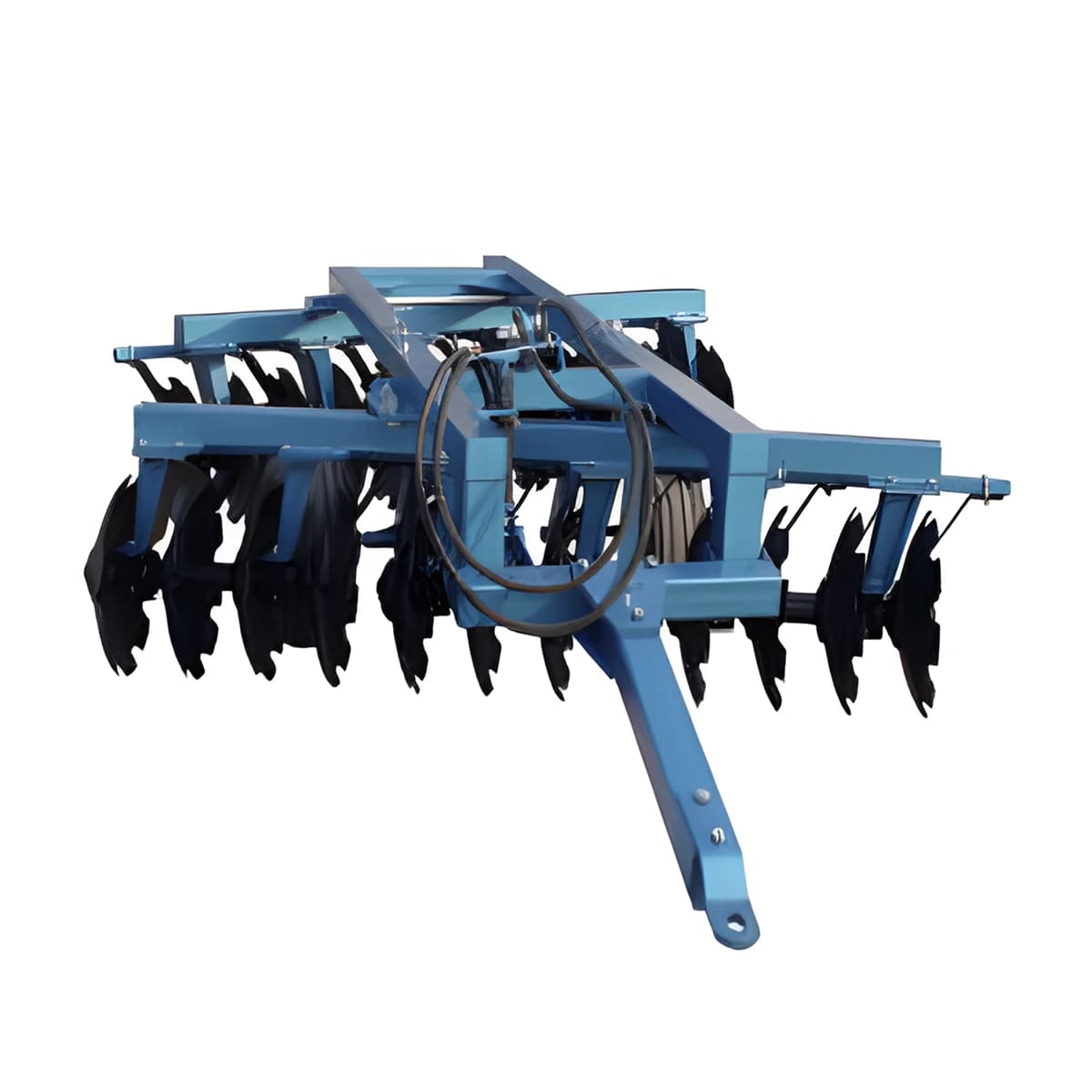

Heavy Disc Harrow LCBB
Available models: 3
Disc harrow designed for intensive soil cultivation and mixing of crop residues. Robust construction and a large number of discs ensure effective soil loosening and uniform field preparation for subsequent tillage operations. Available in various working widths, suitable for tractors with power ranging from 80 to 220 HP.
Parameters
Technical data
Working width (m)
LCBB-20242.4
LCBB-24282.8
LCBB-28343.4
Weight (kg)
LCBB-20241800
LCBB-24282100
LCBB-28342400
Number of discs
LCBB-202420
LCBB-242824
LCBB-283428
Recommended power (HP)
LCBB-202480–120
LCBB-2428120–160
LCBB-2834180–220
LCBB-2024
LCBB-2428
LCBB-2834
Working width (m)
2.4
2.8
3.4
Weight (kg)
1800
2100
2400
Number of discs
20
24
28
Recommended power (HP)
80–120
120–160
180–220
