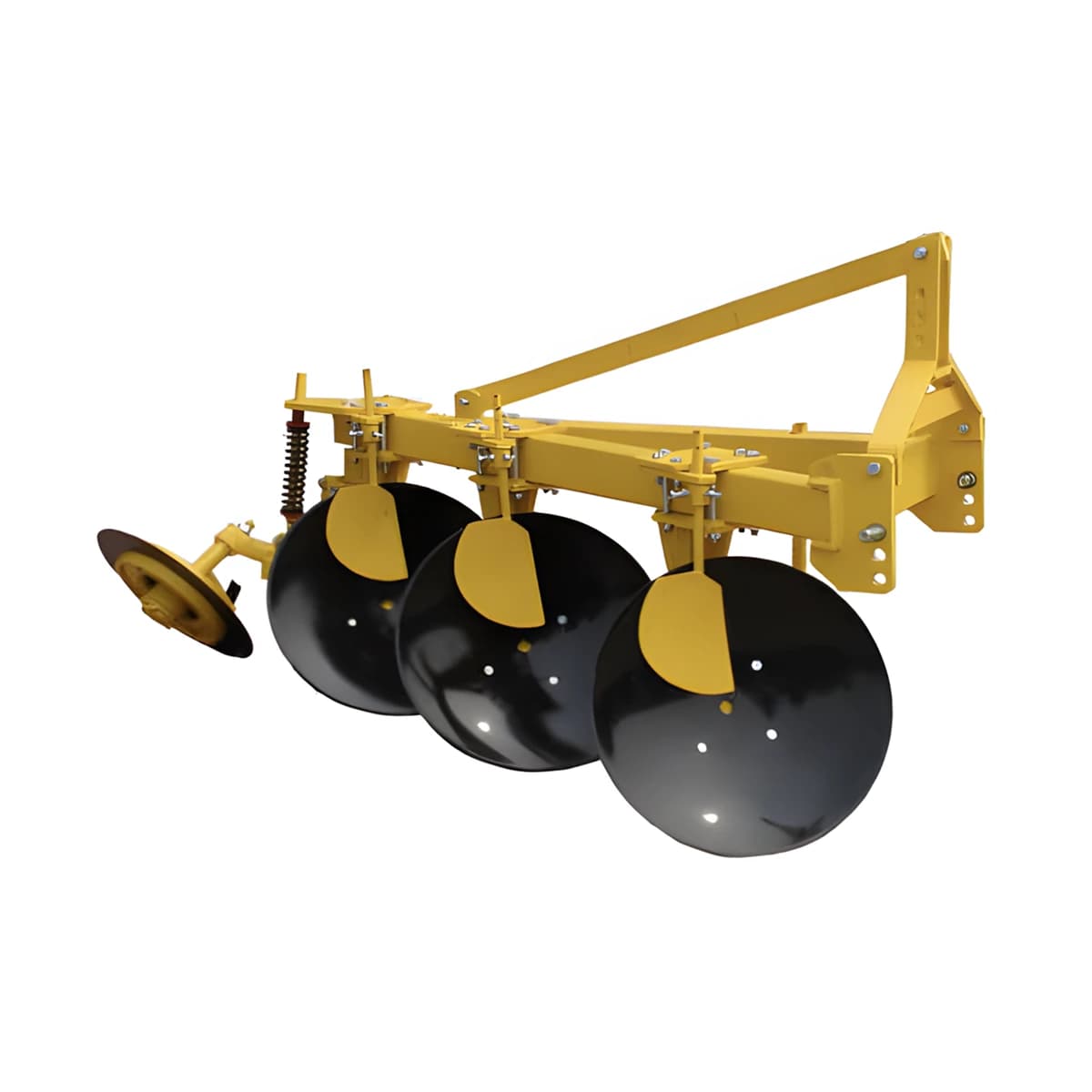

Disc plow 1LY (with scraper)
Available models: 9
Disc plow equipped with scrapers, designed for operation in challenging soil conditions. The construction allows effective soil loosening and prevents soil from sticking to the discs.
Parameters
Technical data
Working width (m)
1LYQ-2200.4
1LYQ-3150.45
1LYQ-3200.6
1LYQ-3250.75
1LYQ-4251.0
1LYQ-5251.25
1LYQ-6251.5
1LYQ-3300.9
1LYQ-4301.2
Weight (kg)
1LYQ-220200
1LYQ-315210
1LYQ-320230
1LYQ-325480
1LYQ-425540
1LYQ-525640
1LYQ-625670
1LYQ-330490
1LYQ-430570
Disc diameter (mm)
1LYQ-220510
1LYQ-315460
1LYQ-320510
1LYQ-325660
1LYQ-425660
1LYQ-525660
1LYQ-625660
1LYQ-330710
1LYQ-430710
Recommended power (HP)
1LYQ-220≥18
1LYQ-315≥25
1LYQ-32025–40
1LYQ-325≥50
1LYQ-42580–100
1LYQ-525100–120
1LYQ-625120–160
1LYQ-33055
1LYQ-43065
1LYQ-220
1LYQ-315
1LYQ-320
1LYQ-325
1LYQ-425
1LYQ-525
1LYQ-625
1LYQ-330
1LYQ-430
Working width (m)
0.4
0.45
0.6
0.75
1.0
1.25
1.5
0.9
1.2
Weight (kg)
200
210
230
480
540
640
670
490
570
Disc diameter (mm)
510
460
510
660
660
660
660
710
710
Recommended power (HP)
≥18
≥25
25–40
≥50
80–100
100–120
120–160
55
65
