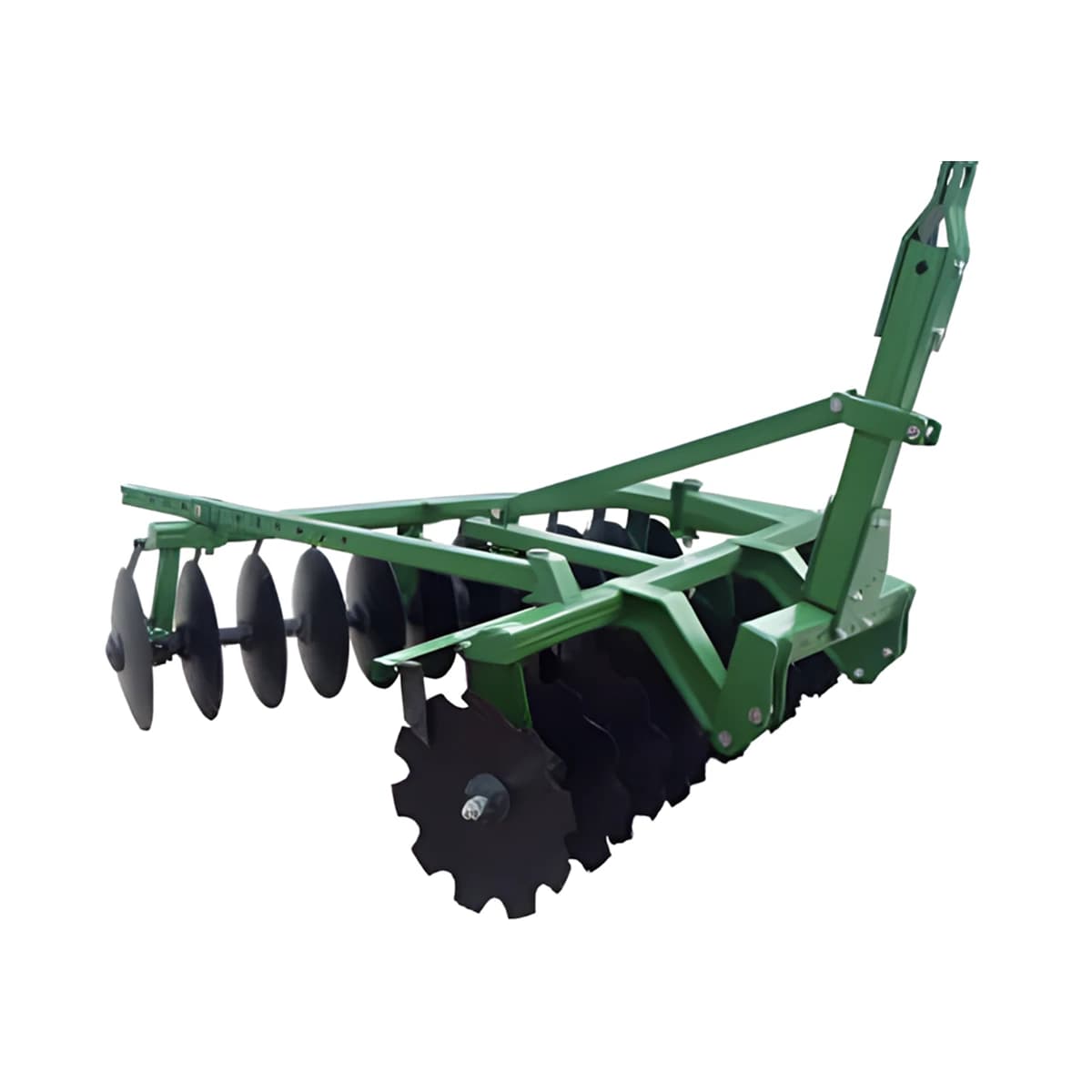

Offset disc harrow with 1BJ hinge
Available models: 5
Offset disc harrow with hinge designed for soil cultivation, mixing of crop residues, and field preparation for subsequent agrotechnical treatments. Robust construction and optimal disc arrangement ensure effective soil loosening.
Parameters
Technical data
Working width (m)
1BJ-8-81.8
1BJ-9-92.0
1BJ-10-102.3
1BJ-11-112.5
1BJ-12-122.7
Weight (kg)
1BJ-8-8570
1BJ-9-9620
1BJ-10-10680
1BJ-11-11730
1BJ-12-12800
Number of discs
1BJ-8-816
1BJ-9-918
1BJ-10-1020
1BJ-11-1122
1BJ-12-1224
Recommended power (HP)
1BJ-8-850–60
1BJ-9-960–70
1BJ-10-1070–80
1BJ-11-1180–100
1BJ-12-1290–110
1BJ-8-8
1BJ-9-9
1BJ-10-10
1BJ-11-11
1BJ-12-12
Working width (m)
1.8
2.0
2.3
2.5
2.7
Weight (kg)
570
620
680
730
800
Number of discs
16
18
20
22
24
Recommended power (HP)
50–60
60–70
70–80
80–100
90–110
